2U Dual Intel Xeon Scalable Processors
Use Cases
- Web Server
- FireWall Applications
- Corporate- WINS, DNS, Print, Login
- Gateway, provisioning servers
- Network Appliance
- Cloud Computing
HIGHLIGHTS
- 16 DIMM Slots – Up to 2TB total memory
- 6 x 3.5″ or 2.5″ SATA/SAS + 2 x 3.5″ or 2.5″ SATA/SAS/NVMe drive bays
- Up to 4 x Dual Slot GPU’s
- 8 x PCI-E 4.0 slots
- 4 x M.2 Slots (x4)
Specs
| Motherboard | |
|---|---|
| Processor Support | Dual Intel® Xeon® LGA 4189 Scalable Gen. 3 Processors (Ice Lake) with 3 x UPI Links Up to 11.2GT/s |
| Chipset | Intel® C621A Chipset |
| System Memory (Max.)* | Up to 2TB Registered ECC DDR4 3200MHz SDRAM; 16 DIMM slots |
| Networking | Dual 1GbE i350-AM2 |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | ASPEED AST2600 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Dimensions(mm) | 800mm x 440mm x 88.9mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® PCH 621A SATA (6 Gbps) controller + NVMe controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 6 x 3.5" or 2.5" SATA/SAS + 2 x 3.5" or 2.5" SATA/SAS/NVMe drive bays |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 8 PCI-E 4.0 FHFL 1 PCI-E 4.0 x16 LP HHHL 1 PCI-E 3.0 x8 OCP |
| Power | |
|---|---|
| Power Supply | 2 x 1600W Redundant high-efficiency power supplies with I2C & PMBus |

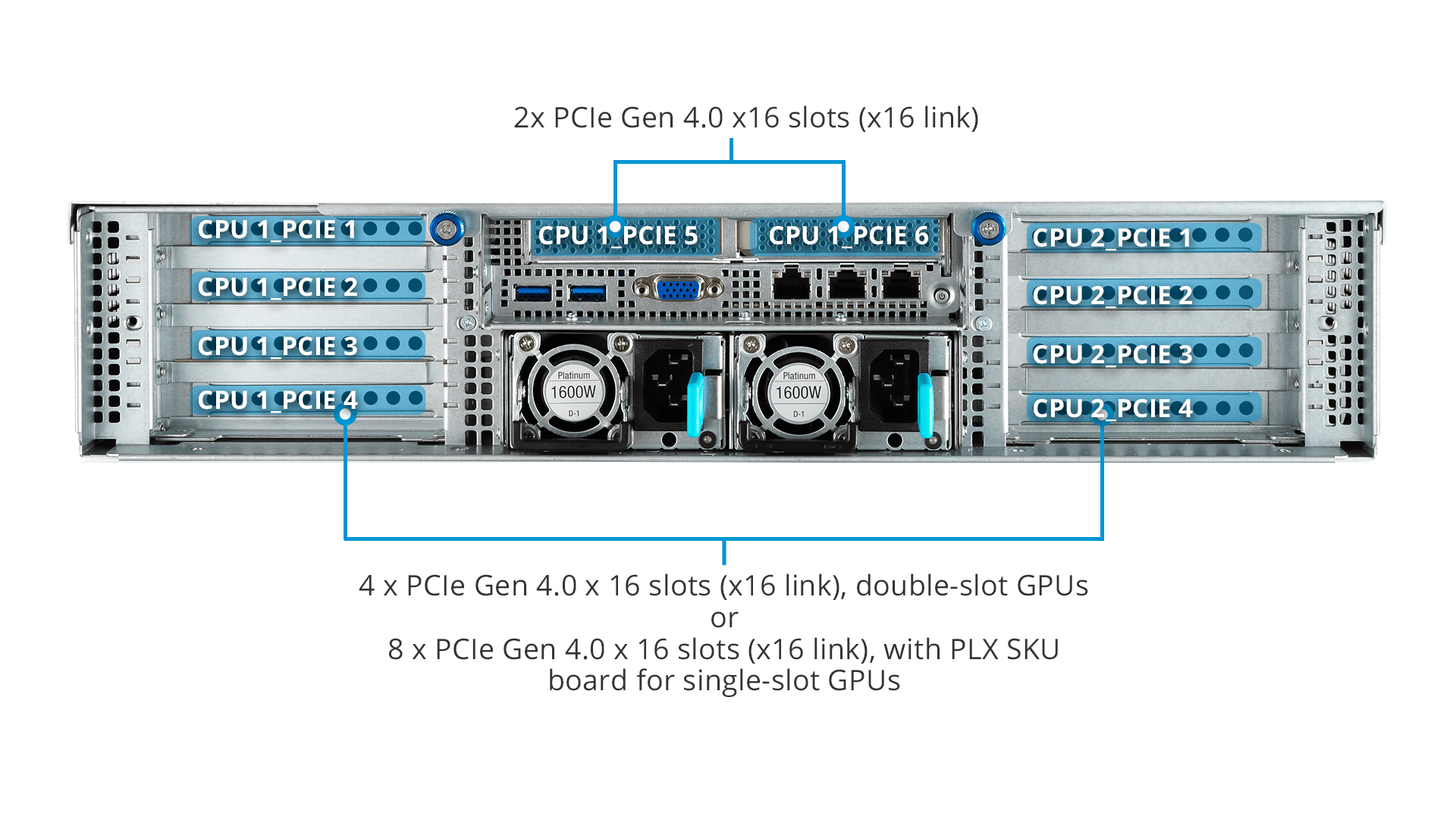

I/O Layout
