1U Single Intel Xeon E-2300 Processor
Use Cases
- Web Server
- Firewall Applications
- Corporate – WINS, DNS, Print, Login
- Gateway, Provisioning Servers
- Network Appliance
Highlights
- 4 DIMM Slots – Up to 128GB Total Memory
- 2 x SATA/SAS/NVMe + 2 x SATA/SAS
- 1 x PCI-E 4.0 x16 slot
- 1 x PCI-E 4.0 x8 slot
- 1 x M.2 Slot (x4)
Specs
| Motherboard | |
|---|---|
| Processor Support | Single Intel® Xeon®E-2300 Series Processors (Rocket Lake) |
| Chipset | Intel® C252 Chipset |
| System Memory (Max.)* | Up to 128GB Unbuffered ECC DDR4 3200MHz SDRAM; 4 DIMM slots |
| Networking | Dual 1GbE i210AT |
| Networking Options | Optional 10GbE, 25GbE, 40GbE, 100GbE Ports Available |
| VGA/Audio | ASPEED AS2600 BMC |
| Remote Management | Redfish API, IPMI 2.0; KVM with dedicated LAN |
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Dimensions (mm) | 497mm x 439.5mm x 44mm |
| Storage | |
|---|---|
| Onboard Storage Controller | Intel® SATA (6 Gbps) controller + NVMe controller |
| RAID Controller Options | Optional Hardware RAID or SAS HBA Available |
| Drive Bays | 2 x SATA/SAS/NVMe + 2 x SATA/SAS |
| Peripheral Bays | N/A |
| Expandability | |
|---|---|
| Expansion Slots | 1 PCI-E 4.0 x16 FHFL 1 PCI-E 4.0 x8 LP HHHL 1 PCI-E 3.0 x4 Internal |
| Power | |
|---|---|
| Power Supply | 350W high-efficiency power supply with I2C & PMBus |

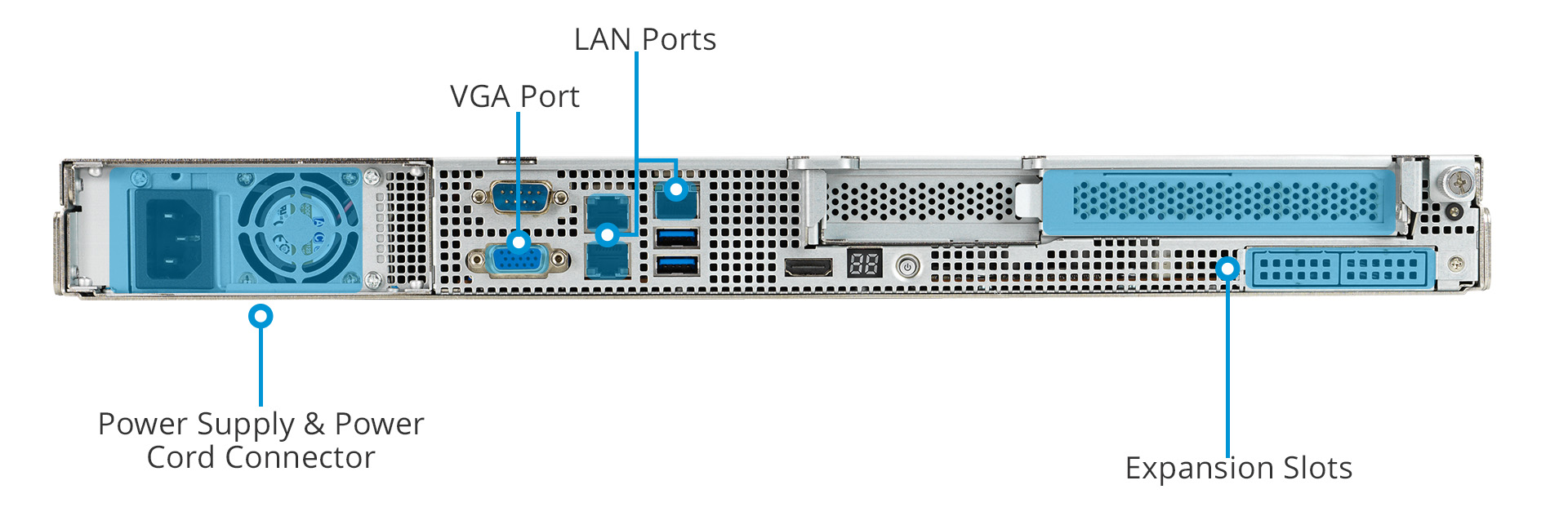

I/O Layout
